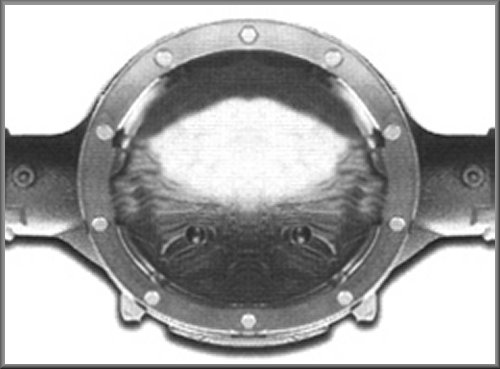

GM 8.5 - 10 bolt cover with 8.5 ring gear. Ring gear has 10 bolts and pinion has 30 spline.
C/clip rear could have 28 or 30 spline axles. All 92 & up trucks and SUVs will have 30 spline axles.

Ring Gear Bolts (10) 7/16 x 20 LH Cover Bolts 10 Carrier Breaks 2.56 / 2.73 Spline Count 1.625 / 30 Float SF Pinion Support False

Sitter p�

1/2 Ton GM Pickup	1977 - 1991	Front
1/2 Ton GM Pickup	1979 - 2001	Rear
1/2 Ton GM Van	1979 - 2000	Rear
3/4 Ton GM Pickup	1977 - 1990	Front
3/4 Ton GM Pickup	1979 - 1998	Rear
3/4 Ton GM Van	1976 - 1998	Rear
Belair	1970 - 1975	Rear
Blazer	1980 - 1991	Front
Blazer	1982 - 1994	Rear
Bonneville	1971 - 1979	Rear
Camaro	1970 - 1981	Rear
Caprice	1970 - 1996	Rear
Catalina	1970 - 1996	Rear
El Camino	1971 - 1976	Rear
Firebird Trans Am	1970 - 1972	Rear
Grand Prix	1971 - 1977	Rear
GTO	1971 - 1977	Rear
Lemans	1971 - 1977	Rear
Monte Carlo	1971 - 1978	Rear
Nova	1970 - 1979	Rear
Suburban 1/2 Ton	1979 - 2001	Rear
Suburban 1/2 Ton	1980 - 1981	Front
Suburban 3/4 Ton	1988 - 1991	Front
Syclone	1991 - 1991	Rear
Tahoe / Yukon	1992 - 2001	Rear
Typhoon	1992 - 1993	Rear
